Machine Business(장비사업부)

​장비사업부에서는 고객의 needs에 부합하는 자동화장비의 설계 및 생산라인에 최적화 하여 적용하는 활동을 합니다.

The Equipment Division designs automation equipment that meets customer needs and optimizes its application to production lines.

fmt nfc winder.png
NFC Coilwinding Machine
​
  • Target Product: NFC antenna coil
  • Number of Motor axis: 6 axis
  • Production Capqacity
  • Number winding core: 1 core
  • Winding Time: 10 sec
  • Winding Method: Core winding with aligned wire pitch
  • HMI: 7 inch TFT touch panel
  • Host Interface: 10/100 base ethernet
  • Widing software: GTS winding editor
​

​

Bobbinless Coilwinding Machine
​​
  • Target Product: Camera coil, VCM coil, etc.
  • Number of Motor axis: 2 axis
  • Production Capqacity
  • Max Winding Speed: 3000 rpm
  • Number winding core: 1 core
  • Winding Time: 10 sec
  • Winding Method: Core winding with aligned wire pitch
  • HMI: 7 inch TFT touch panel
  • Host Interface: 10/100 base ethernet
  • Widing software: GTS winding editor
​

​


20-spindle full-automatic winding and gluing machine

​

  • Number of spindles Spindle number: 20

  • Spindle spacing (mm) Maximum spindle speed: 42

  • Spindle servo motor power: 1500~2000

  • Applicable wire diameter (mm) Winding wire range: 0.06~0.5

  • Maximum outer Dia. of bobbin: 22

  • Tape range (mm): 2.5~10

  • Machine body size (mm) Machine size: 2200X1100X1700

  • Machine weight (kg) Machine weight: 500

index Type NFC Coilwinding Machine
​​
  • Target Product: NFC antenna coil
  • Number of Process:
  • Number of Motor axis: 6 axis
  • Production Capqacity
  • Number winding core: 1 core
  • Winding Time: 10 sec
  • Winding Method: Core winding with aligned wire pitch
  • HMI: 7 inch TFT touch panel
  • Host Interface: 10/100 base ethernet
  • Widing software: GTS winding editor
​

​

12 axis bobbin type Winding Machine
​
  • Target Product: Relay, Trans coils, etc.
  • Number of spindles Spindle number: 12
  • Spindle spacing (mm) Maximum spindle speed: 72mm
  • Spindle servo motor power: 2KW
  • Tape range (mm): 3~30mm
  • Machine body size (mm) Machine size: 1300x1200x1700
  • Machine weight (kg) Machine weight: 600Kg

​


12 axis bobbin type Winding Machine

​

  • Number of spindles Spindle number: 12

  • Spindle spacing (mm) Maximum spindle speed: 72

  • Spindle servo motor power: 2000

  • Tape range (mm): 3~30

  • Machine body size (mm) Machine size: 1300x1200x1700

  • Machine weight (kg) Machine weight: 600Kg


8-spindle automatic valve production line

​

  • Number of spindles: 8

  • Spindle spacing (mm) Maximum spindle speed: 51

  • Spindle servo motor power: 1500

  • Applicable wire diameter (mm) Winding wire range: 0.06 ~ 0.7

  • Maximum outer Dia. of bobbin: 30

  • Machine body size (mm) Machine size: 3200 x 1100 x 1700

  • Machine weight (kg) Machine weight: 800Kg


12 spindle 50.7 wheelbase fully automated winding coating machine

​

  • Number of spindles Spindle number: 12

  • Spindle spacing (mm) Maximum spindle speed: 72

  • Spindle servo motor power: 2000

  • Tape range (mm): 3~30

  • Machine body size (mm) Machine size: 1300x1200x1700

  • Machine weight (kg) Machine weight: 600Kg


Automatic Laser Soldering Production Line for Winding and Basing of Transformer

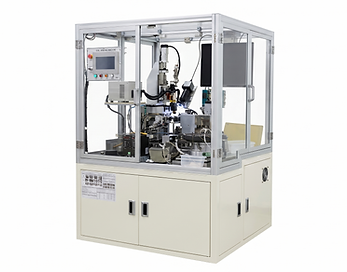

NFC winder-type2.png

NFC coil winding machine-type2

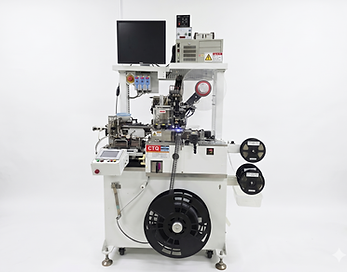

NFC안테나 릴자동포장및 특성검사기

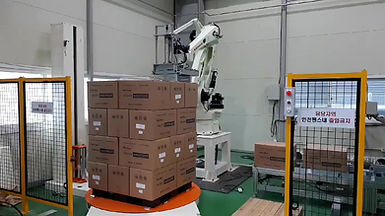

​포장박스 자동 로딩/언로딩장비
​화장품 용기 자동 로딩/언로딩장비
NFC자동 권선기
정전척 폴리싱&코팅 검사장치
