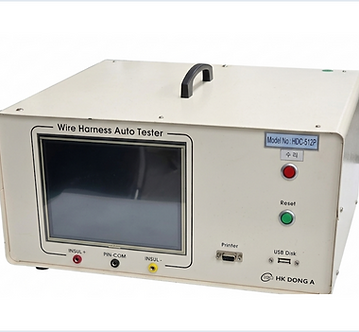

• Main CPU: STM32F407ZET6 32bit ARM

• Inspection Channels: Max 512 channels

• Inspection Category: Open/Short, Resistance, Diode, Capacitance, Misswire

• LCD Display: 7 inch TFT color touch panel

• USB Disk port: Data Logging

• Power: DC5V/10A

• OP switch: panel andf foot switrches

• User Cable terminal: 64P each

• Inspection time: <0.5s(512 channels)

​

• Main CPU: STM32F411RCT6 32bit ARM

• Inspection Channels: Max 256 channels

• Inspection Category: Open/Short, Misswire

• LCD Display: 4.3 inch TFT color touch panel

• TFT Disk slot: Data Logging

• Power: AC220V/1A

• OP switch: foot switrche

• User Cable terminal: 64P each

• Inspection time: <0.5s(256 channels)

​이 장비는 냉동 바이얼을 급속해동하는 의료용 보조장비입니다. This equipment is a medical auxiliary device for rapidly thawing frozen vials.

• Main CPU: STM32F411RCT6 32bit ARM

• Preheating Time: 180s

• Thawing Time: 1~60 minnutes

• Temp Sensor Type: NTC 10K/1%

• Actuator: Stepper Motor

• Display: Big size 7 segment LED(2 colosr)

• Power: DC25V/5A

• OP switch: panel switches

이 장비는 자율주행차량 핸들의 자동 폴딩 언폴딩 동작을 구현하는 목적으로 개발되었습니다. 당사에서는 구동제어부를 설계 및 펌웨어를 개발하였습니다. This equipment was developed for the purpose of implementing the automatic folding and unfolding operation of an autonomous vehicle steering wheel. We designed the drive control unit and developed the firmware.

​

• Main CPU: STM32F411RCT6 Arm

• Moto Control: 2 axis BLDC with driver withgout driver

• Over-current sensing  of motor(automatically move to reverse direction for this case)

• Windoiws Aging Software

• Manual Switch inputs​

이 장비는 특정공간의 공기오염을 신속하게 청정하는 고속공기청정제어시스템입니다. 당사에서는 제어시스템전체를 개발했습니다.

This equipment is a high-speed air purification control system that rapidly cleans air pollution in specific spaces. We developed the entire control system.

​

• Main CPU: STM32F411RCT6 32 bit

• Display: 4.3 inch TFT color touch panel

• Temperature and humidity monitoring

• DC400V motor power supply

• Soft Power-On input

• AC220V/750W

• Auto filter life cycle monitoring and preset

​

보빈레스, 보빈타입의 자동권선기를 제어하는 시스템이며 10여년간의 노하우로 완성되어었습니다. It is a system that controls bobbinless and bobbin-type automatic winding machines, and it has been perfected with over 10 years of know-how.

​​

• Main CPU: STM32F407ZET6 32 bit Arm

• Ethernet: 10/100 base

• Touch Panel: Nextion/Weinview Panel support

• Data Flash: Max 8M byte

• 4-axis robot controller with linear/circular interpolation functions

• Winding Edtor for user specific winding sequence.

• AC220V/400W

• OP pannel box drive

대용량 히트펌프제어를 담당하는 시스템입니다.​​

This is a system responsible for controlling large-capacity heat pumps.

• Main CPU: STM32F407ZET6 32 bit Arm

• Ethernet: 10/100 base

• Touch Panel: Nextion/Weinview Panel support

• Data Flash: Max 8M byte

• Temperature: Max 8 channels of thermocouples

• on-Board SSRs: Max 16 channels(AC220V/3A)

• GPIO: 16 channels

• USB Host/slave: 1 port

• AC220V/400W

군용 상업용 소형드론제어시스템목적으로 개발되었습니다. It was developed for the purpose of a control system for small military and commercial drones.

FCU specification​

• FCU Main CPU: STM32F722 32 bit Arm

• on-board IMU

• on-board Baro meter

• Max DC24V input

• 8-channel PWM esc port

• 1-channel SPI for FPV

• Data Flash: Max 512K byte

• 3-channes UART for external devices

• USB Host/slave: 1 port

• 2-channels 12-bit ADC port

ESC SPEC

• ESC Main CPU: STM32G030 32 bit Arm

• BLDC controller: FD6288T

• BLDC driver: 40V/120A(3P BLDC)

• 1-channes UART for external devices

AI기반 바탕으로 바이브코딩으로 개발된 당사 최초의 어플로 NFC코일을 정밀하게 검사하는 시스템입니다.  This is our company's first application developed using AI-based VIVE coding, a system that precisely inspects NFC coils.

​

딥러닝 추론 및 객체 검출

ONNX와 YOLO 기반 딥러닝 추론 기술로 효율적인 객체 검출과 이미지 분석이 가능합니다.

GPU 가속 및 연산 효율

GPU와 ILGPU를 활용해 연산 처리 속도와 효율성을 대폭 향상시킵니다.

UI 및 카메라 기술

.NET 5와 Windows Forms로 UI를 구현하고 DirectShowLib로 카메라를 제어합니다.

다양한 프로그래밍 언어 활용

C#, Nullable 참조 형식과 Python 기반 도구를 통해 신뢰성과 확장성을 제공합니다.

​

Deep Learning Inference and Object Detection

Efficient object detection and image analysis are possible through deep learning inference technology based on ONNX and YOLO.

GPU Acceleration and Computational Efficiency

Significantly improves computational processing speed and efficiency by utilizing GPUs and ILGPUs.

UI and Camera Technology

The UI is implemented using .NET 5 and Windows Forms, and the camera is controlled via DirectShowLib.

Utilization of Various Programming Languages

Reliability and scalability are provided through C#, Nullable reference types, and Python-based tools.

유아용 자동 콧물흡입기 제어시스템입니다. 흡입력을 장비에 부착된 볼륨으로 실시간제어를 하며, 시각적 표현을  multi-led로 단계적으로 표현합니다.​

This is a control system for an automatic nasal aspirator for infants. It controls suction power in real-time using a volume control attached to the device and displays levels visually using multi-LEDs.

​

​​

• Main CPU: STM32G030

• Motor Driver: DC Pump Motor

• Temp Sensor Alarm: Internal overtemp protection

• Auto Power OFF after 40 minutes

• AC220V/15W

핵산 자동추출제어시스템은 바이오고객사의 다양한 추출 프로토콜사양에 맞추어 당사가 개발한 프로토콜에디터로 정밀한 추출작업이 이루어지도록하는 역할을 수행합니다. The automated nucleic acid extraction control system plays a role in enabling precise extraction operations using a protocol editor developed by our company, tailored to the diverse extraction protocol specifications of our bio clients.

​

• Main CPU: STM32F407ZET6 32bit Arm

• Motor Control: 4 axis with max 2500 rpm

• Heater Control: 12 heaters

• Temp. Sensors: 12 NTC thermistors

• PID hetaer control algorithm on simultaneous hetater control

• Host Interface: Ethernet port

• Display: 7 inch TFT color touch panel

• Windows based Protocol Editor

• AC220V/600W

ESP32 Weather Station-LCD

​

•  ESP32-2432S032 내장 ST7789 LCD에 날씨 대시보드 표시

• - Wi-Fi STA 연결 및 끊김 감지, 주기적 재접속 처리

• - IP 기반 위치 조회 후 위도/경도를 기상청 격자(nx, ny)로 변환

•  NTP 인터넷 시간 동기화 및 날짜/시각 표시

•  기상청 KMA 초단기 실황/예보 API로 온도, 습도, 바람, 강수 정보 표시

•  체감온도, 강수 상태, 날씨 아이콘, 3개 예보 슬롯 데이터 구성

• - LCD 전체 화면 갱신과 시계 전용 부분 갱신 분리

• - 온도 상태 LED 제어: 고온, 저온, 정상 범위 점멸 표시

•  Wi-Fi/API 실패 시 오프라인 데모 날씨 데이터로 화면 유지

•  자체 HTTP/JSON 경량 파서 사용으로 외부 JSON 라이브러리 의존 최소화

• ESP32 Weather Station-LCD

• **Displays a weather dashboard on the built-in ST7789 LCD of the ESP32-2432S032**

• - Detects Wi-Fi STA connection and disconnection, and handles periodic reconnection.

• - Converts latitude and longitude to the KMA grid (nx, ny) after IP-based location lookup.

• - Synchronizes with NTP internet time and displays date and time.

• - Displays temperature, humidity, wind, and precipitation information using the KMA ultra-short-term real-time/forecast API.

• - Configures data for wind chill, precipitation status, weather icons, and 3 forecast slots.

• - Separates full-screen LCD refresh from clock-only refresh.

• - Temperature status LED control: Displays flashing indicators for high, low, and normal ranges.

• - Maintains the screen using offline demo weather data in case of Wi-Fi/API failure.

• - Minimizes dependency on external JSON libraries by using a proprietary lightweight HTTP/JSON parser.
